Nourrice droite et fourche diamètre 32
• Entrée mâle avec sortie à écrou prisonnier
• Possibilité entrée femelle, lisse, à écrou prisonnier
• Droite, fourche en h, possible suivant croquis
• Matière : PP-R
• Norme DIN 16962, UNI EN ISO 15874
• Utilisation : Eau potable, chauffage, géothermie, air comprimé

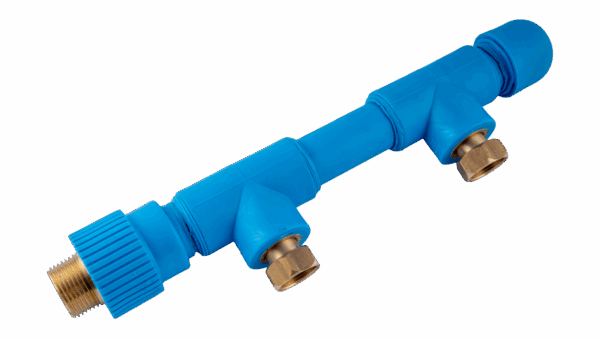

DROITE Ø32
| Reference | Entrée mâle | Ecrou | Nombre de départs | Ajout devis |
|---|---|---|---|---|
| NIR_132112 | 3/4" | 3/4" | 2 | |
| NIR_132113 | 3/4" | 3/4" | 3 | |
| NIR_132114 | 3/4" | 3/4" | 4 | |
| NIR_132115 | 3/4" | 3/4" | 5 | |
| NIR_132116 | 3/4" | 3/4" | 6 | |
| NIR_132117 | 3/4" | 3/4" | 7 | |
| NIR_132118 | 3/4" | 3/4" | 8 | |
| NIR_132212 | 1" | 3/4" | 2 | |
| NIR_132213 | 1" | 3/4" | 3 | |
| NIR_132214 | 1" | 3/4" | 4 | |
| NIR_132215 | 1" | 3/4" | 5 | |
| NIR_132216 | 1" | 3/4" | 6 | |
| NIR_132217 | 1" | 3/4" | 7 | |
| NIR_132218 | 1" | 3/4" | 8 | |
| NIR_132222 | 1" | 1" | 2 | |
| NIR_132223 | 1" | 1" | 3 | |
| NIR_132224 | 1" | 1" | 4 | |
| NIR_132225 | 1" | 1" | 5 | |
| NIR_132226 | 1" | 1" | 6 | |
| NIR_132227 | 1" | 1" | 7 | |
| NIR_132228 | 1" | 1" | 8 | |
| NIR_132312 | 1"1/4 | 3/4" | 2 | |
| NIR_132313 | 1"1/4 | 3/4" | 3 | |
| NIR_132314 | 1"1/4 | 3/4" | 4 | |
| NIR_132315 | 1"1/4 | 3/4" | 5 | |
| NIR_132316 | 1"1/4 | 3/4" | 6 | |
| NIR_132317 | 1"1/4 | 3/4" | 7 | |
| NIR_132318 | 1"1/4 | 3/4" | 8 | |
| NIR_132412 | 1"1/2 | 3/4" | 2 | |
| NIR_132413 | 1"1/2 | 3/4" | 3 | |
| NIR_132414 | 1"1/2 | 3/4" | 4 | |
| NIR_132415 | 1"1/2 | 3/4" | 5 | |
| NIR_132416 | 1"1/2 | 3/4" | 6 | |
| NIR_132417 | 1"1/2 | 3/4" | 7 | |
| NIR_132418 | 1"1/2 | 3/4" | 8 |

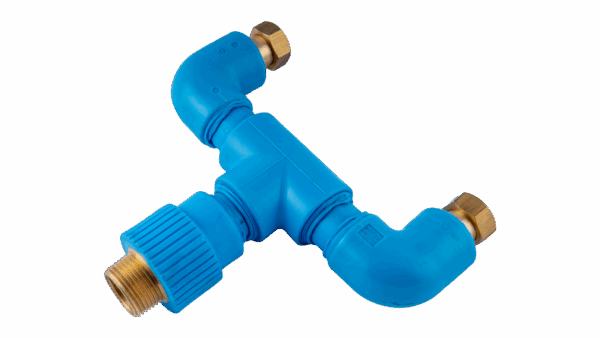

FOURCHE Ø32
| Reference | Entrée mâle | Ecrou | Nombre de départs | Ajout devis |
|---|---|---|---|---|
| NIR_232112 | 3/4" | 3/4" | 2 | |
| NIR_232113 | 3/4" | 3/4" | 3 | |
| NIR_232114 | 3/4" | 3/4" | 4 | |
| NIR_232115 | 3/4" | 3/4" | 5 | |
| NIR_232116 | 3/4" | 3/4" | 6 | |
| NIR_232117 | 3/4" | 3/4" | 7 | |
| NIR_232118 | 3/4" | 3/4" | 8 | |
| NIR_232222 | 1" | 3/4" | 2 | |
| NIR_232223 | 1" | 3/4" | 3 | |
| NIR_232224 | 1" | 3/4" | 4 | |
| NIR_232225 | 1" | 3/4" | 5 | |
| NIR_232226 | 1" | 3/4" | 6 | |
| NIR_232217 | 1" | 3/4" | 7 | |
| NIR_232218 | 1" | 3/4" | 8 | |
| NIR_232212 | 1" | 1" | 2 | |
| NIR_232213 | 1" | 1" | 3 | |
| NIR_232214 | 1" | 1" | 4 | |
| NIR_232215 | 1" | 1" | 5 | |
| NIR_232216 | 1" | 1" | 6 | |
| NIR_232227 | 1" | 1" | 7 | |
| NIR_232228 | 1" | 1" | 8 | |
| NIR_232312 | 1"1/4 | 3/4" | 2 | |
| NIR_232313 | 1"1/4 | 3/4" | 3 | |
| NIR_232314 | 1"1/4 | 3/4" | 4 | |
| NIR_232315 | 1"1/4 | 3/4" | 5 | |
| NIR_232316 | 1"1/4 | 3/4" | 6 | |
| NIR_232317 | 1"1/4 | 3/4" | 7 | |
| NIR_232318 | 1"1/4 | 3/4" | 8 | |
| NIR_232412 | 1"1/2 | 3/4" | 2 | |
| NIR_232413 | 1"1/2 | 3/4" | 3 | |
| NIR_232414 | 1"1/2 | 3/4" | 4 | |
| NIR_232415 | 1"1/2 | 3/4" | 5 | |
| NIR_232416 | 1"1/2 | 3/4" | 6 | |
| NIR_232417 | 1"1/2 | 3/4" | 7 | |
| NIR_232418 | 1"1/2 | 3/4" | 8 |
