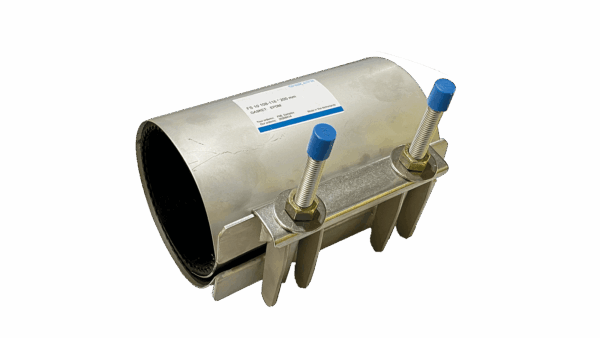

Manchon de réparation simple bande tout inox
• Corps en inox 304L
• Boulons en inox avec bouchons de protection aux extrémités
• Joint d’étanchéité en EPDM
• Domaine d’emploi acier, fonte, amiante ciment, PVC, PEHD
• Utilisation pour eau froide ou tempérée
• Solution de connexion et de réparation temporaire
Longueur 200mm
| Référence | DN | Tolérance | PN | Ajout devis |
|---|---|---|---|---|
| MSB_20001 | 40 | 44 - 51 | 16 | |
| MSB_20002 | 40 | 48 - 55 | 16 | |
| MSB_20003 | 40 | 52 - 59 | 16 | |
| MSB_20004 | 40 | 57 - 64 | 16 | |
| MSB_20005 | 50 | 60 - 67 | 16 | |
| MSB_20006 | 50 | 63 - 70 | 16 | |
| MSB-20007 | 50 | 67 - 74 | 16 | |
| MSB_20008 | 65 | 70 - 77 | 16 | |
| MSB_20009 | 65 | 73 - 80 | 16 | |
| MSB_20010 | 65 | 75 - 83 | 16 | |
| MSB_20011 | 65 | 82 - 90 | 16 | |
| MSB_20012 | 80 | 87 - 97 | 16 | |
| MSB_20013 | 80 | 95 - 104 | 16 | |
| MSB_20014 | 80 | 98 - 108 | 16 | |
| MSB_20015 | 80 | 102 - 112 | 16 | |
| MSB_20016 | 100 | 108 - 118 | 16 | |
| MSB_20017 | 100 | 113 -123 | 16 | |
| MSB_20018 | 100 | 118 - 128 | 16 | |
| MSB_20019 | 100 | 120 - 131 | 16 | |
| MSB_20020 | 100 | 125 - 135 | 16 | |
| MSB_20021 | 125 | 133 - 144 | 16 | |
| MSB_20022 | 125 | 139 - 150 | 16 | |
| MSB_20023 | 125 | 145 - 155 | 16 | |
| MSB_20024 | 150 | 151 -161 | 16 | |
| MSB_20025 | 150 | 159 -170 | 16 | |
| MSB_20026 | 150 | 165 - 175 | 16 | |
| MSB_20027 | 150 | 168 - 180 | 16 | |
| MSB_20028 | 150 | 176 - 186 | 10 | |
| MSB_20029 | 150 | 180 - 191 | 10 | |
| MSB_20030 | 150 | 193 - 203 | 10 | |
| MSB_20031 | 150 | 200 - 210 | 10 | |
| MSB_20032 | 200 | 209 - 220 | 10 | |
| MSB_20033 | 200 | 215 - 226 | 10 | |
| MSB_20034 | 200 | 219 - 230 | 10 | |
| MSB_20035 | 200 | 222 - 233 | 10 | |
| MSB_20036 | 200 | 228 - 240 | 10 | |
| MSB_20037 | 200 | 243 - 253 | 10 | |
| MSB_20038 | 200 | 252 - 262 | 10 | |
| MSB_20039 | 200 | 261 - 271 | 10 | |
| MSB_20040 | 250 | 271 - 281 | 10 | |
| MSB_20041 | 250 | 280 - 290 | 10 |
longueur 300mm
| Référence | DN | Tolérance | PN | Ajout devis |
|---|---|---|---|---|
| MSB_30003 | 40 | 52 - 59 | 16 | |
| MSB_30004 | 40 | 57 - 64 | 16 | |
| MSB_30005 | 50 | 60 - 67 | 16 | |
| MSB_30006 | 50 | 63 - 70 | 16 | |
| MSB_30007 | 50 | 67 - 74 | 16 | |
| MSB_30008 | 65 | 70 - 77 | 16 | |
| MSB_30009 | 65 | 73 - 80 | 16 | |
| MSB_30010 | 65 | 75 - 83 | 16 | |
| MSB_30011 | 65 | 82 - 90 | 16 | |
| MSB_30012 | 80 | 87 - 97 | 16 | |
| MSB_30013 | 80 | 95 - 104 | 16 | |
| MSB_30014 | 80 | 98 - 108 | 16 | |
| MSB_30015 | 80 | 102 - 112 | 16 | |
| MSB_30016 | 100 | 108 - 118 | 16 | |
| MSB_30017 | 100 | 113 -123 | 16 | |
| MSB_30018 | 100 | 118 - 128 | 16 | |
| MSB_30019 | 100 | 120 - 131 | 16 | |
| MSB_30020 | 100 | 125 - 135 | 16 | |
| MSB_30021 | 125 | 133 - 144 | 16 | |
| MSB_30022 | 125 | 139 - 150 | 16 | |
| MSB_30023 | 125 | 145 - 155 | 16 | |
| MSB_30024 | 150 | 151 -161 | 16 | |
| MSB_30025 | 150 | 159 -170 | 16 | |
| MSB_30026 | 150 | 165 - 175 | 16 | |
| MSB_30027 | 150 | 168 - 180 | 16 | |
| MSB_30028 | 150 | 176 - 186 | 10 | |
| MSB_30029 | 150 | 180 - 191 | 10 | |
| MSB_30030 | 150 | 193 - 203 | 10 | |
| MSB_30031 | 150 | 200 - 210 | 10 | |
| MSB_30032 | 200 | 209 - 220 | 10 | |
| MSB_30033 | 200 | 215 - 226 | 10 | |
| MSB_30034 | 200 | 219 - 230 | 10 | |
| MSB_30035 | 200 | 222 - 233 | 10 | |
| MSB_30036 | 200 | 228 - 240 | 10 | |
| MSB_30037 | 200 | 243 - 253 | 10 | |
| MSB_30038 | 200 | 252 - 262 | 10 | |
| MSB_30039 | 200 | 261 - 271 | 10 | |
| MSB_30040 | 250 | 271 - 281 | 10 | |
| MSB_30041 | 250 | 280 - 290 | 10 |
