Nourrice droite et fourche diamètre 25
• Entrée mâle avec sortie à écrou prisonnier
• Possibilité entrée femelle, lisse, à écrou prisonnier
• Droite, Fourche, en h, possible suivant croquis
• Matière : PP-R
• Norme DIN 16962, UNI EN ISO 15874
• Utilisation : Eau potable, chauffage, géothermie, air comprimé

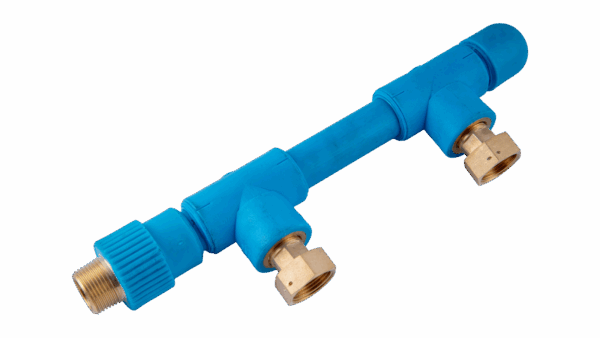

Droite Ø25
| Référence | Entrée mâle | Ecrou | Nombre de départs | Ajout devis |
|---|---|---|---|---|
| NIR_125112 | 3/4" | 3/4" | 2 | |
| NIR_125113 | 3/4" | 3/4" | 3 | |
| NIR_125114 | 3/4" | 3/4" | 4 | |
| NIR_125115 | 3/4" | 3/4" | 5 | |
| NIR_125116 | 3/4" | 3/4" | 6 | |
| NIR_125117 | 3/4" | 3/4" | 7 | |
| NIR_125118 | 3/4" | 3/4" | 8 | |
| NIR_125212 | 1" | 3/4" | 2 | |
| NIR_125213 | 1" | 3/4" | 3 | |
| NIR_125214 | 1" | 3/4" | 4 | |
| NIR_125215 | 1" | 3/4" | 5 | |
| NIR_125216 | 1" | 3/4" | 6 | |
| NIR_125217 | 1" | 3/4" | 7 | |
| NIR_125218 | 1" | 3/4" | 8 | |
| NIR_125312 | 1"1/4 | 3/4" | 2 | |
| NIR_125313 | 1"1/4 | 3/4" | 3 | |
| NIR_125314 | 1"1/4 | 3/4" | 4 | |
| NIR_125315 | 1"1/4 | 3/4" | 5 | |
| NIR_125316 | 1"1/4 | 3/4" | 6 | |
| NIR_125317 | 1"1/4 | 3/4" | 7 | |
| NIR_125318 | 1"1/4 | 3/4" | 8 | |
| NIR_125412 | 1"1/2 | 3/4" | 2 | |
| NIR_125413 | 1"1/2 | 3/4" | 3 | |
| NIR_125414 | 1"1/2 | 3/4" | 4 | |
| NIR_125415 | 1"1/2 | 3/4" | 5 | |
| NIR_125416 | 1"1/2 | 3/4" | 6 | |
| NIR_125417 | 1"1/2 | 3/4" | 7 | |
| NIR_125418 | 1"1/2 | 3/4" | 8 |

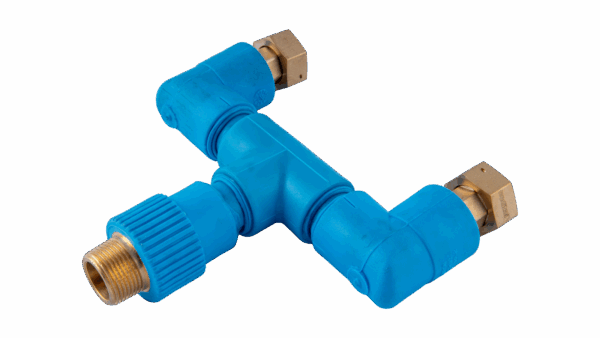

Fourche Ø25
| Référence | Entrée mâle | Ecrou | Nombre de départs | Ajout devis |
|---|---|---|---|---|
| NIR_225112 | 3/4" | 3/4" | 2 | |
| NIR_225113 | 3/4" | 3/4" | 3 | |
| NIR_225114 | 3/4" | 3/4" | 4 | |
| NIR_225115 | 3/4" | 3/4" | 5 | |
| NIR_225116 | 3/4" | 3/4" | 6 | |
| NIR_225117 | 3/4" | 3/4" | 7 | |
| NIR_225118 | 3/4" | 3/4" | 8 | |
| NIR_225212 | 1" | 3/4" | 2 | |
| NIR_225213 | 1" | 3/4" | 3 | |
| NIR_225214 | 1" | 3/4" | 4 | |
| NIR_225215 | 1" | 3/4" | 5 | |
| NIR_225216 | 1" | 3/4" | 6 | |
| NIR_225217 | 1" | 3/4" | 7 | |
| NIR_225218 | 1" | 3/4" | 8 | |
| NIR_225312 | 1"1/4 | 3/4" | 2 | |
| NIR_225313 | 1"1/4 | 3/4" | 3 | |
| NIR_225314 | 1"1/4 | 3/4" | 4 | |
| NIR_225315 | 1"1/4 | 3/4" | 5 | |
| NIR_225316 | 1"1/4 | 3/4" | 6 | |
| NIR_225317 | 1"1/4 | 3/4" | 7 | |
| NIR_225318 | 1"1/4 | 3/4" | 8 | |
| NIR_225412 | 1"1/2 | 3/4" | 2 | |
| NIR_225413 | 1"1/2 | 3/4" | 3 | |
| NIR_225414 | 1"1/2 | 3/4" | 4 | |
| NIR_225415 | 1"1/2 | 3/4" | 5 | |
| NIR_225416 | 1"1/2 | 3/4" | 6 | |
| NIR_225417 | 1"1/2 | 3/4" | 7 | |
| NIR_225418 | 1"1/2 | 3/4" | 8 |
